‹ Home › Inventory › 2022 Harley-Davidson® Fat Bob® 114 Vivid Black

HDCPO (HD CERTIFIED PRE-OWN) 12 MONTHS FACTORY POWERTRAIN WARRANTY INCLUDED~HD OFFICIAL 110-POINT INSPECTION CHECKLIST~~SPECIAL FINANCE RATE AVAILABLE~~DISCOUNTS AVAILABLE ON EXTENDED SERVICE PLANS~~~

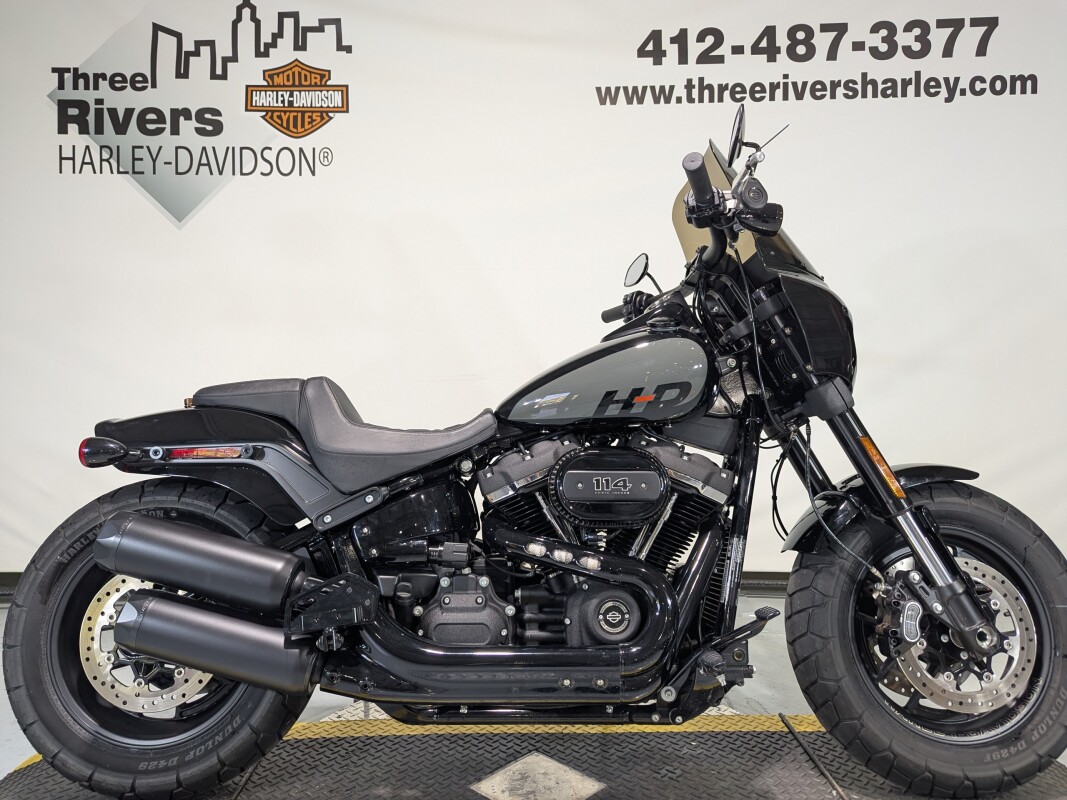

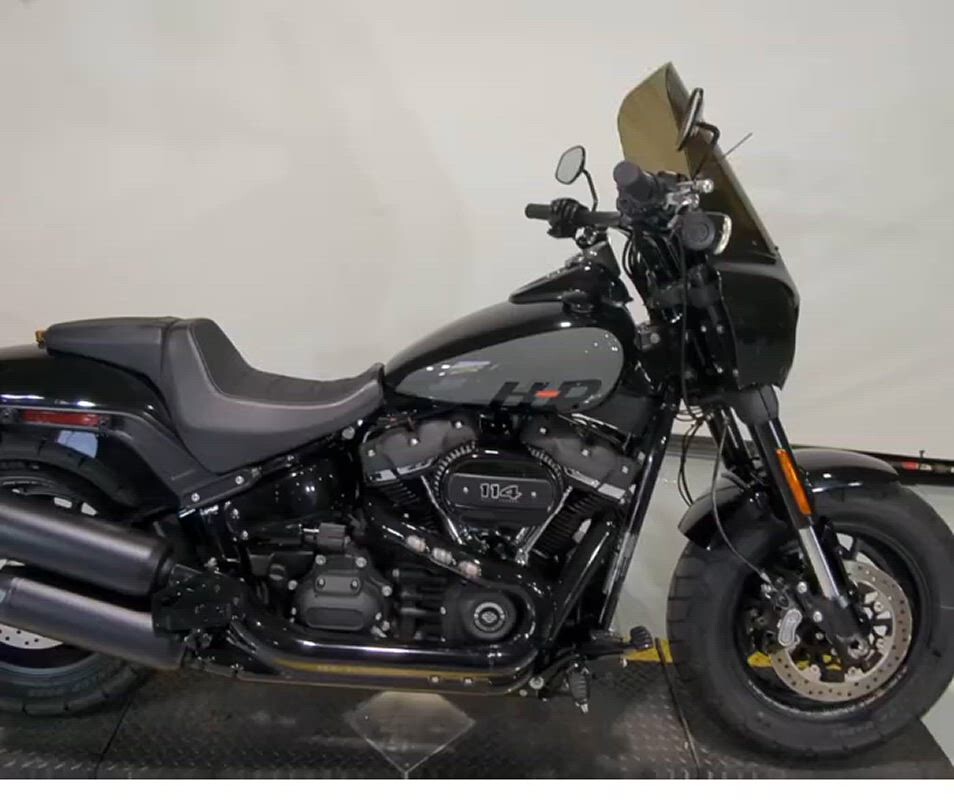

Pre-owned 2022 Harley-Davidson® Fat Bob® 114 for sale near Glenshaw, PA

This Pre-owned Vivid Black 2022 Harley-Davidson® Fat Bob® 114 is for sale at Three Rivers Harley-Davidson^® located in Glenshaw, PA. Contact Three Rivers Harley-Davidson^® of Glenshaw, PA today to schedule a test-ride (no test rides available for bikes in BUDGET LOT category). If this isn't the exact Harley-Davidson® you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Glenshaw where we host one of the largest selections of new and used motorcycles. Visit Three Rivers Harley-Davidson^® of Glenshaw, your PA Harley-Davidson® dealership. PA’s premier new & used motorcycle dealer, we'll help you ride home on a new Harley-Davidson® today!

Three Rivers Harley-Davidson^®

Easy Financing. Call Today!

Map Directions: 1463 Glenn Avenue

Click To Call: (412) 487-3377

Specifications

Dimensions

add remove
- Length:

  92.1 in
- Seat height, unladen:

  28.0 in
- Ground clearance:

  4.7 in
- Rake (steering head):

  28
- Trail:

  5.2 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  150/80-16,71H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  3.5 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  653 lbs
- Weight, in running order:

  675 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.0 ft-lb
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  31
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  128 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Denim black, Structure cast aluminum with laser etched graphics
- Wheels, rear type:

  Denim black, Structure cast aluminum with laser etched graphics
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
